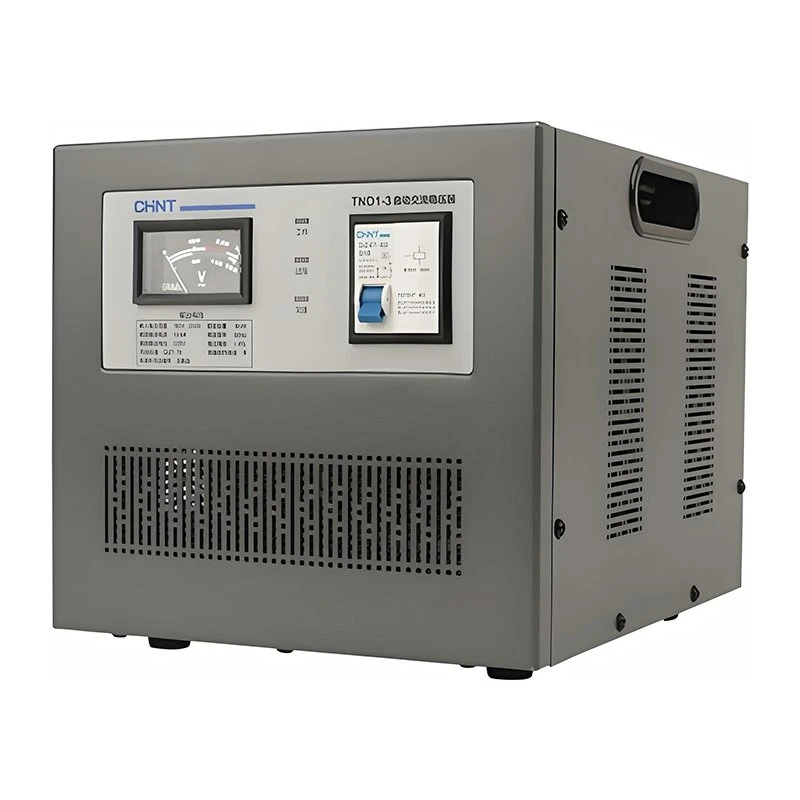

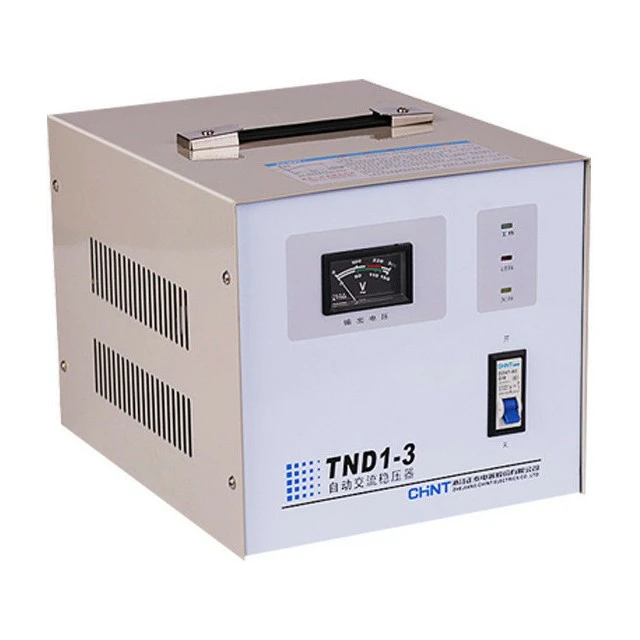

Embroidery Voltage Regulator
Our Embroidery Special Three-phase Servo Voltage Stabilizer is tailor-made for multi-head computer embroidery machines, flat embroidery, cap embroidery, sequin embroidery and laser integrated embroidery equipment.
Adopting dry air-cooled design without oil, it features fireproof, explosion-proof, dustproof and moisture-proof performance, perfectly matching textile factory high-dust & high-humidity working environment. With microprocessor true RMS intelligent control, the response speed reaches ≤0.075s, output voltage stable at ±1% precision, effectively eliminate grid voltage drop, surge, harmonic interference and three-phase imbalance problems.
It equips full set of safety protection including overvoltage, undervoltage, overload, short circuit, overheat, phase loss & phase unbalance protection, with LCD real-time data display and manual bypass switch. The efficiency is up to 98%, low energy consumption, supporting 24-hour unattended continuous production.
Stable pure sine-wave power supply avoids servo alarm, pattern offset, frequent needle & thread breakage, greatly reducing embroidery defective rate and extending the service life of embroidery machine servo motor and main control board. Wide input voltage range from 323V to 437V, compatible with unstable power grids of Southeast Asia, Africa, South America and other overseas regions. Multiple capacity models from 10KVA to 300KVA for different embroidery production lines, complete CE & ISO certification for global export.
Core Standard Functions:
LCD digital display screen, A high-definition LCD digital display screen shows the input voltage, output voltage, load current, operating temperature, and fault codes in real time.
True RMS microprocessor intelligent control, True RMS microprocessor intelligent sampling control, real-time dynamic compensation for voltage fluctuations
Built-in bypass switch, Built-in manual bypass switch ensures uninterrupted embroidery machine production during voltage regulator maintenance.
Long-term continuous load design, Designed for continuous 24-hour full-load operation, suitable for factories to operate at full capacity around the clock
|
Item |
Standard Spec |
|
Model |
SBW/SBWJ Series Three-phase Servo Stabilizer |
|
Input Voltage Range |
323V~437V (customizable wide range |
|
Rated Output Voltage |
380V/400V/415V (adjustable) |
|
Voltage Regulation Precision |
±1% (High precision version ±0.5%) |
|
Response Time |
≤0.075s |
|
Frequency |
50Hz / 60Hz (global export standard) |
|
Efficiency |
≥98% |
|
Waveform Distortion |
≤0.5% |
|
Capacity Range |
10KVA / 20KVA / 30KVA / 50KVA / 80KVA / 100KVA / 150KVA / 200KVA / 250KVA / 300KVA |
|
Cooling Type |
Air-cooled dry type (mainstream), oil-cooled optional |
|
Working Temperature |
0℃ ~ 45℃, adapt textile dust & humidity workshop |
