Laser Device
The laser device for embroidery machines provides precision positioning or synchronized laser cutting/engraving, preventing misalignment and needle crashes. It delivers clean edges, enhances accuracy and efficiency, and enriches embroidery effects.

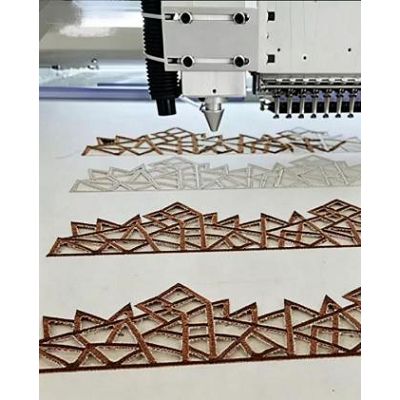

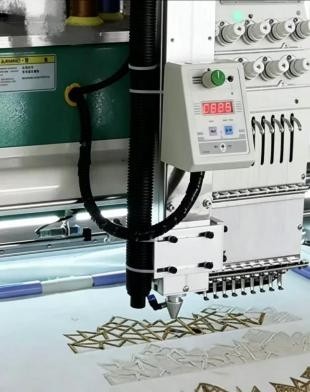

This CO₂ laser device is dedicated optional fitting for multi-head quilting embroidery machine, fully synchronized with machine main control system by pattern file. Non-contact laser cutting seals fabric edge instantly to avoid fraying, finish appliqué trimming, hollow-out lace carving and hole punching after embroidery automatically without secondary die-cut. Different laser power options adapt cotton, polyester, denim, PU leather, non-woven fabric widely used on sofa bedding, garment patches, swimwear, fashion lace decoration. Match with sequin/cording/bead attachment to realize quilting+embroidery+sequin+cording+bead+laser six-in-one composite processing, greatly improve finished product grade and save separate cutting labor cost.
- Auto edge sealing after laser cutting, no raw edge, eliminate manual trimming.
- Program linkage, embroidery and cutting finish on same station, reduce fabric position error.
- Multiple power grades to cover thin cloth to thick leather materials.
- Stable water cooling system supports non-stop mass production.
Core parameters:
|
Laser Source |
CO₂ sealed laser tube |
|
Rated Power |
30W/50W/60W/80WOptional (thin material 30W, leather and thick fabric 80W+) |
|
Cooling Mode |
Water cooling,The entire machine is water-cooled, preventing it from overheating during prolonged continuous operation. |
|
Cut Precision |
±0.01mm,Automatic edge sealing at the cut, preventing fabric from fraying or fraying. |
|
Sync Control |
Synchronized with the main unit's electronic control program, the embroidery and cutting processes are automatically connected. |
|
Available Function |
Applique cut,hollow engraving,perforation |
|
Install |
Rack-mounted side-mounted, requiring no major modifications to the original chassis. |
