Cording device

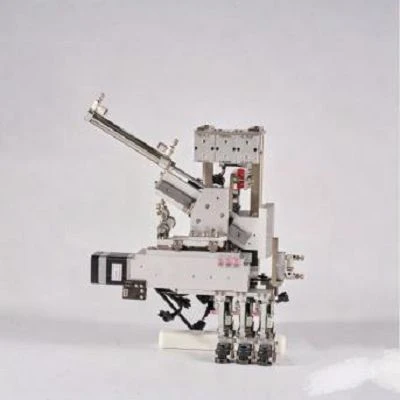

Cording attachment is optional fitting for quilting embroidery machine, adds 3D rope decorative stitch on bedding, sofa cushion and apparel after installation.This feeding device is fully synchronized with main machine control system. It steadily conveys various round cords and flat tapes to sewing position, the base embroidery thread locks rope firmly onto fabric to form stereo decorative lines. With adjustable feeding tension structure, effectively avoid cord over-stretching or stacking during high-speed continuous production. Cooperate with sequin/bead device to realize quilting+embroidery+sequin+cording multi-composite craft, greatly improve product added value for home textile factory.
- Adjustable feeding tension suits different thickness rope & braid.
- Quick installation, convenient to switch between plain embroidery and cording work.
- Stable feeding reduces cord waste and defective rate.
Equipped with different models of devices to adapt to different machine types;
Type: regular type,high speed type,triple color cording,small head distance type For customers to choose
Speed: Applicable to 1000rpm-1500rpm
Applicable cord diameter: 0.5mm～5mm (round rope or flat webbing are both acceptable)
Driving Mode: Servo-driven synchronous drive, starting and stopping synchronously with the host program.
Mounting Way: Quick-release snap-on design, easy to install on the machine head, no frame modification required.
Core Function: Automatic rope feeding, anti-deviation, and tension-adaptive feeding.
